SPECIFICATIONS

Details

PAS: It provides the rider with the right amount of auxiliary power through the synergistic work of sensors, controllers, and motors, making the ride easier and more comfortable.

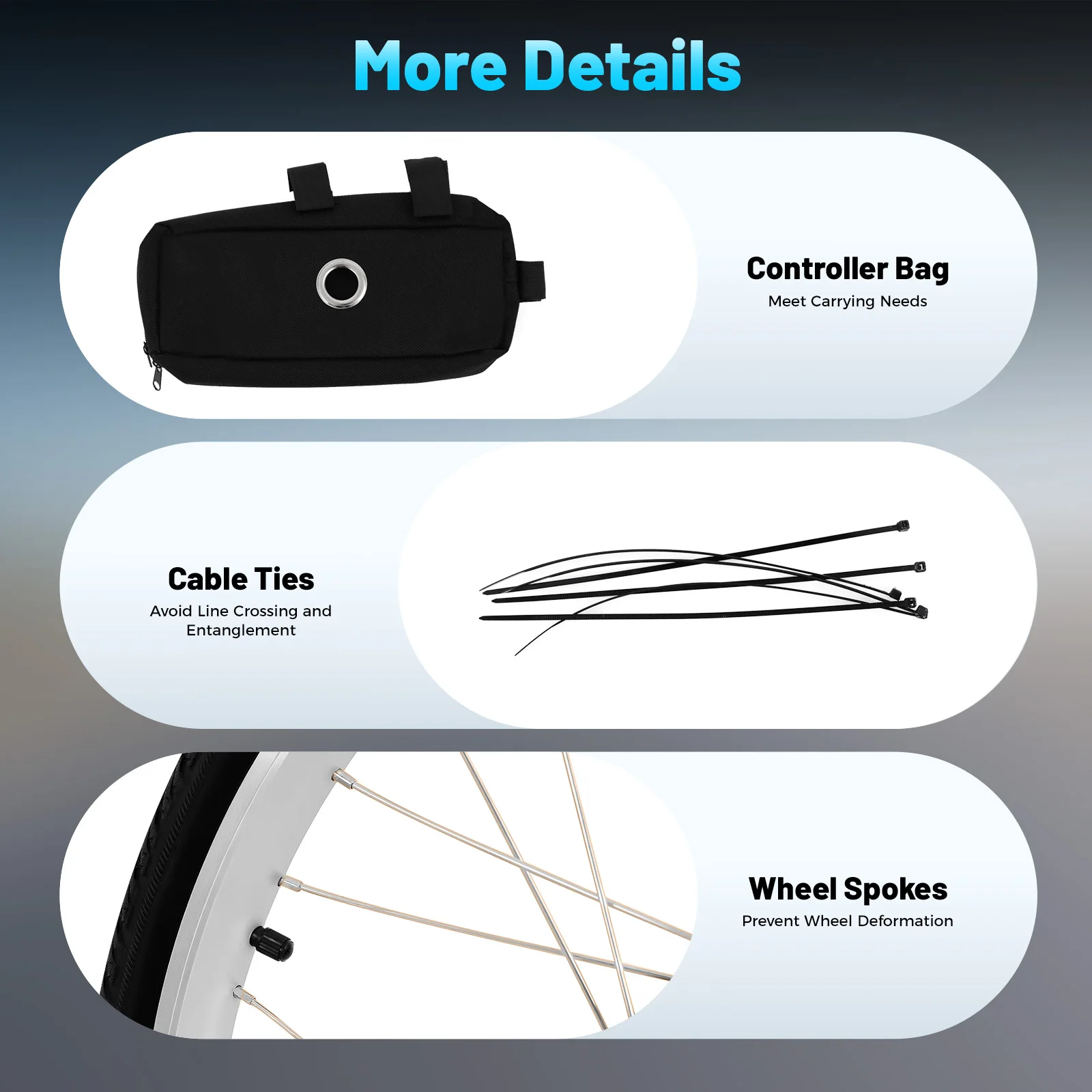

Controller Bag: It can better protect the controller and make it convenient to hang on your bike.

Application

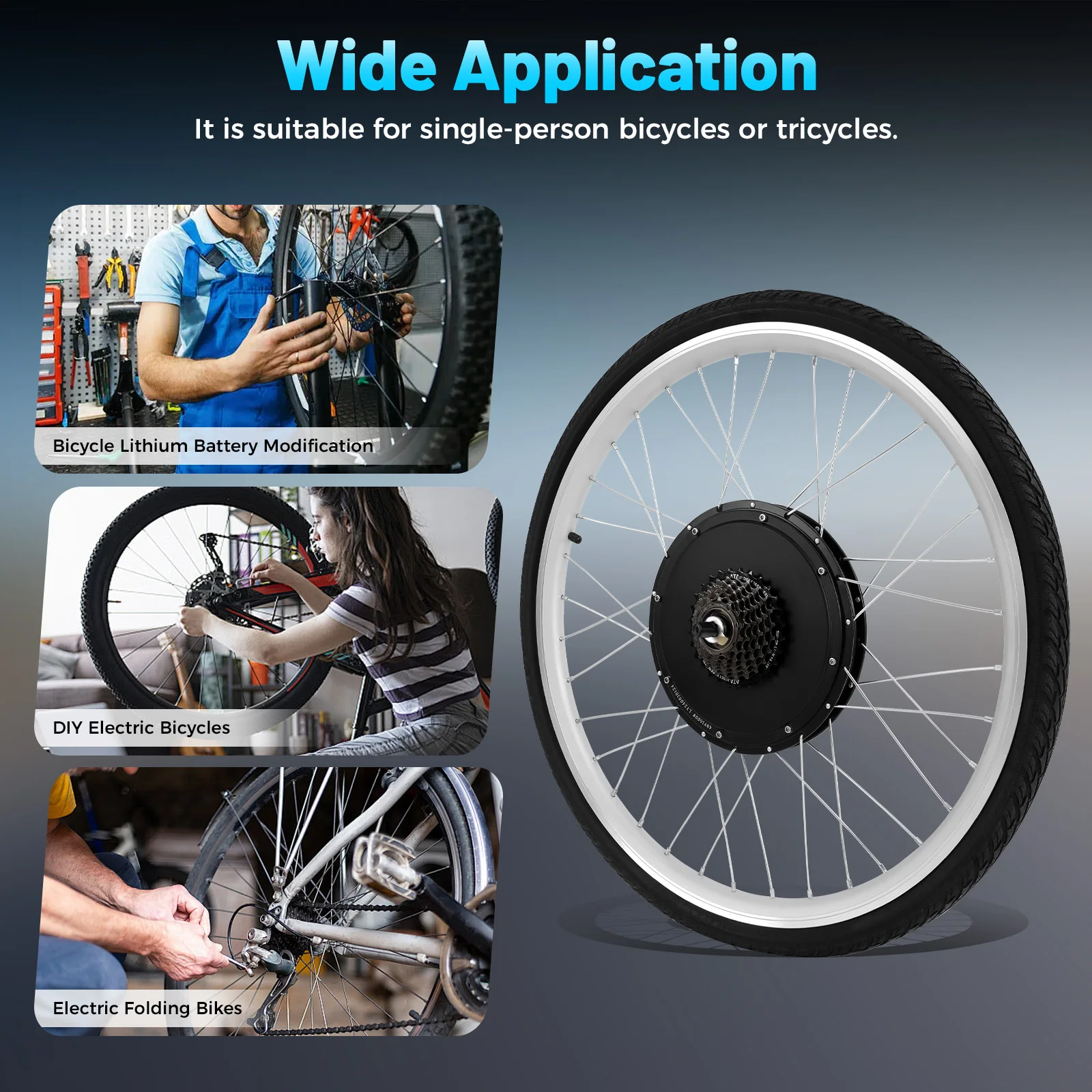

The product is suitable for bikes with a 26-inch tire and can be used as a power device for variable-speed bicycles and general bicycles. It is suitable for bicycle lithium battery modification, DIY electric bicycles, electric folding bikes, etc.

Specifications

Color: Black

Assembly Required: Yes

Material: Nylon, Alloy, Stainless Steel, Aluminum Alloy, Rare Earth Metal Magnet

Process: High-temperature Baking Paint, Plastic Spraying

Power: 1000W

Voltage: 48V

Load Bearing Capacity: About 140kg/308.65lbs

Brake Type: Disc Brake Rotary Cylinder Type

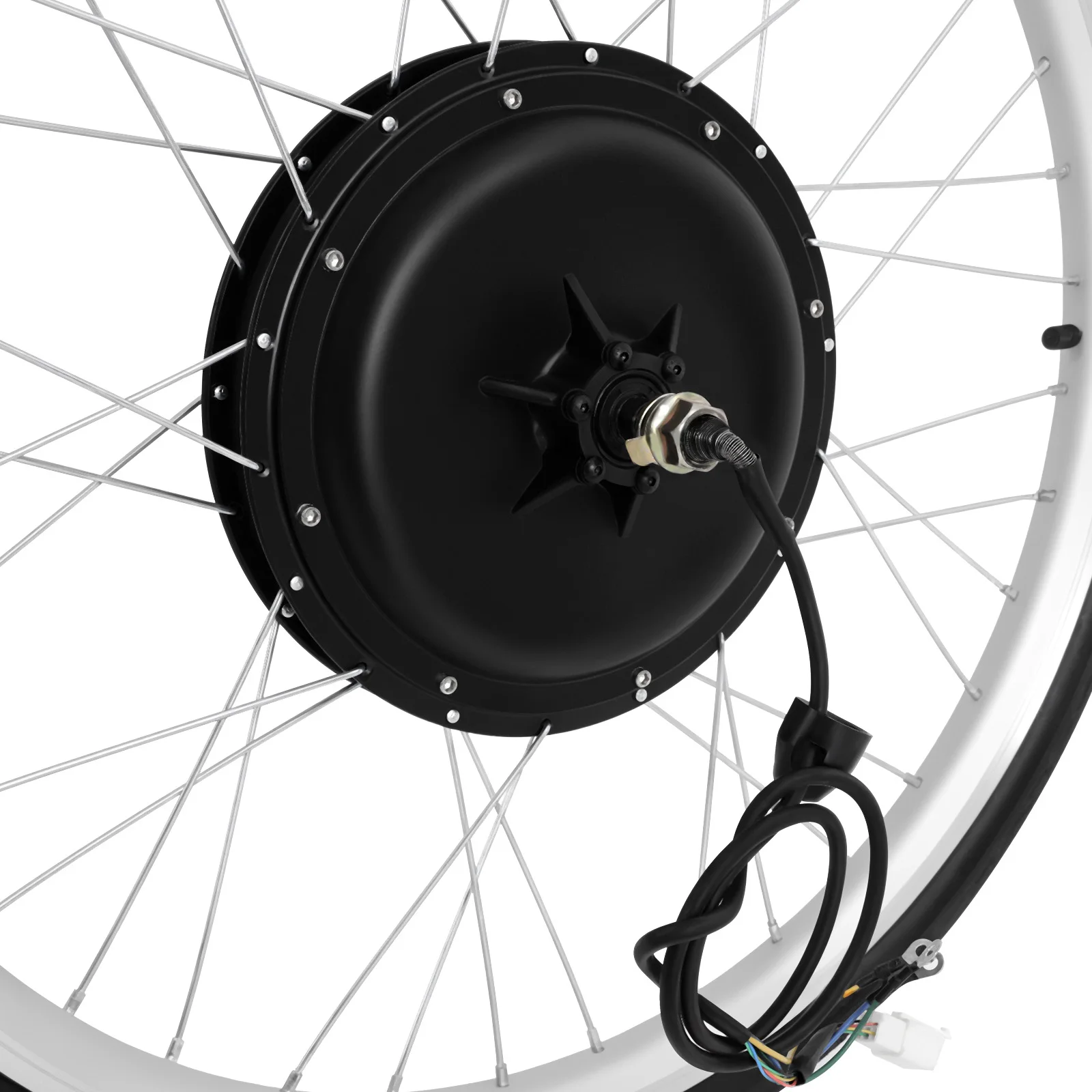

Motor Type: BrushlessToothless 205 Series Copper Wire Hub Motor

Motor Net Weight: 6-6.5kg/13.23-14.33lbs

Motor Weight(With Variable Gear and Disc Brake): 6.5-7kg/14.33-15.43lbs

Motor Diameter: 24.3cm/9.57in

Efficiency:  ≥82%

Motor Shaft Diameter: M14

Motor Shaft Length: 20cm/7.87in

Motor Cable Length: 1m/3.28ft

Number of Hall Sensors: 3

Rated Speed: 460rpm

Rated Torque: 45N·m

Fork Width Requirement: Min. 135mm/5.315in

Controller: 1000W 48V Controller

Suitable Wheel Diameter(Not Rim): 66cm/26in

Speed: About 50km/h/31.05mph

Brake Cable Length: 1.72m/5.64ft

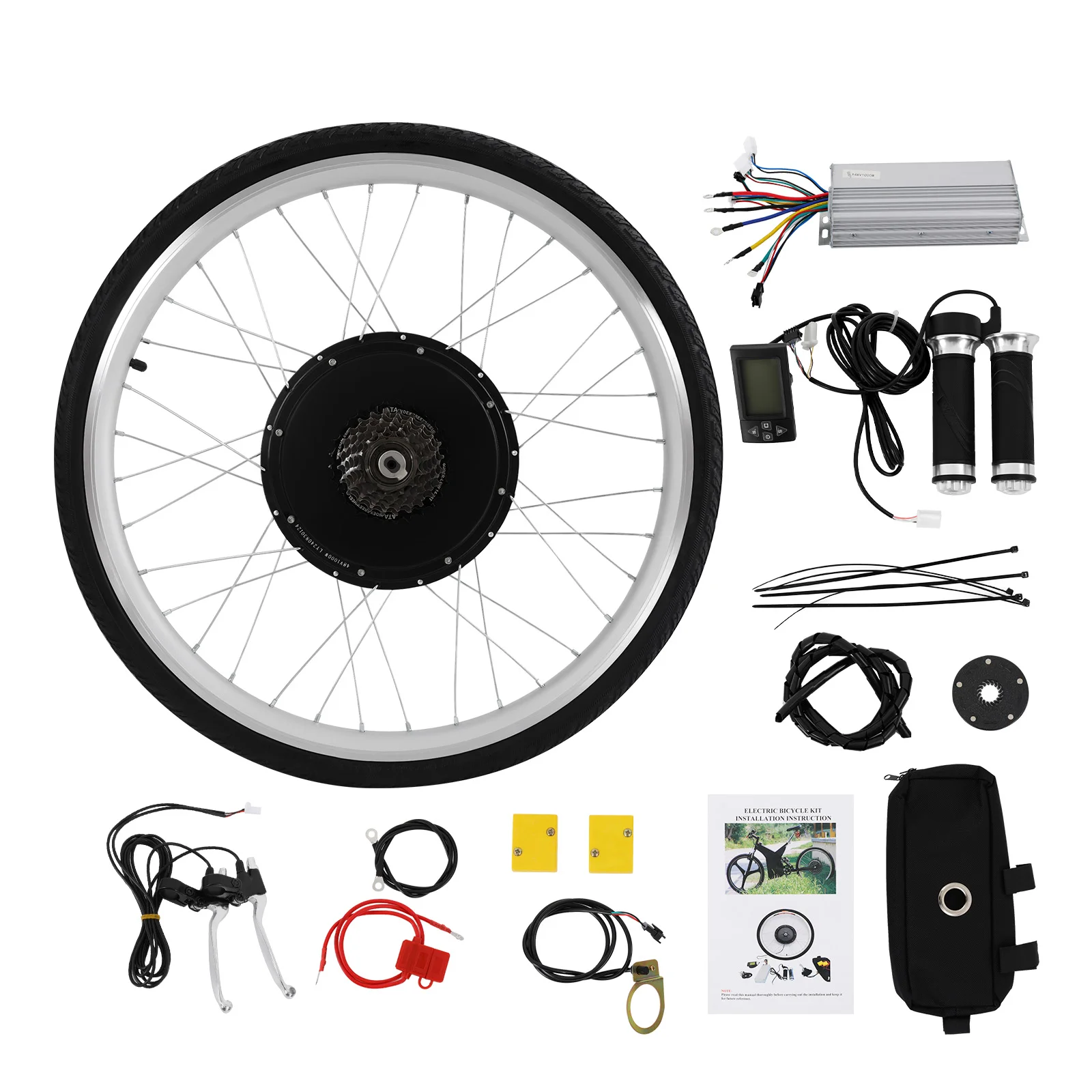

Package Included

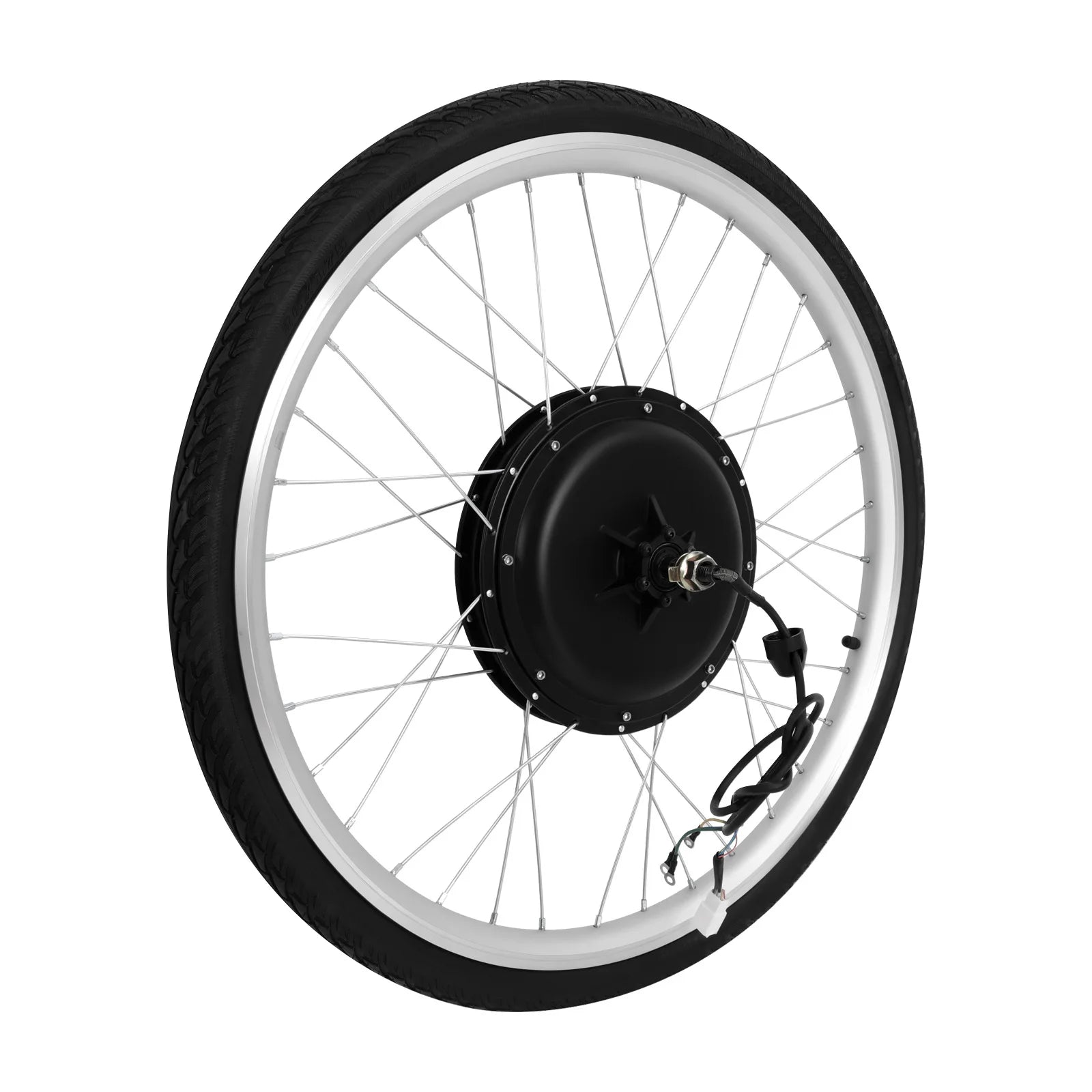

1* Rear Motor Wheel

1* 48V 1000W Controller

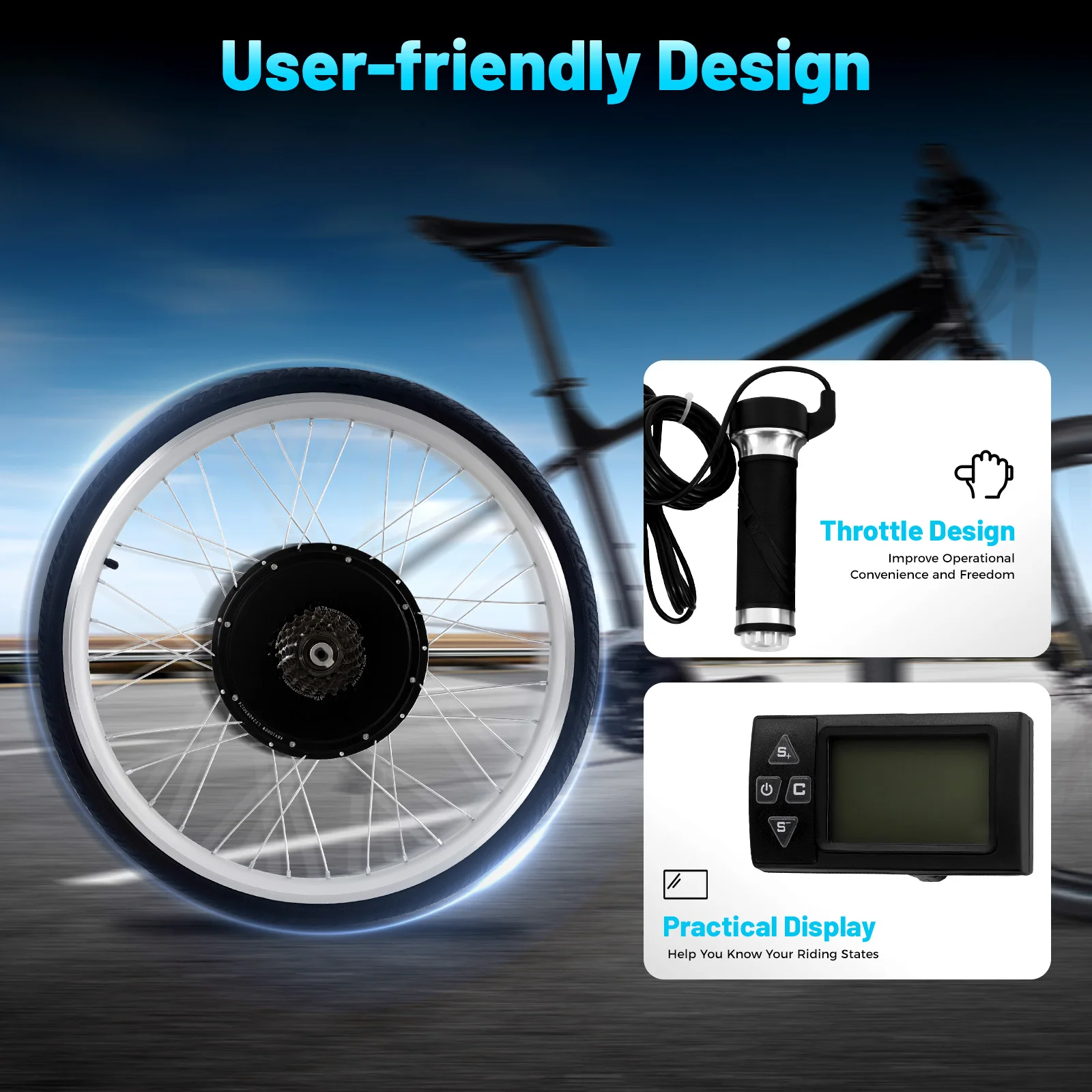

2* Throttles

2* Brake Levers

2* Controller Bags

1* PAS

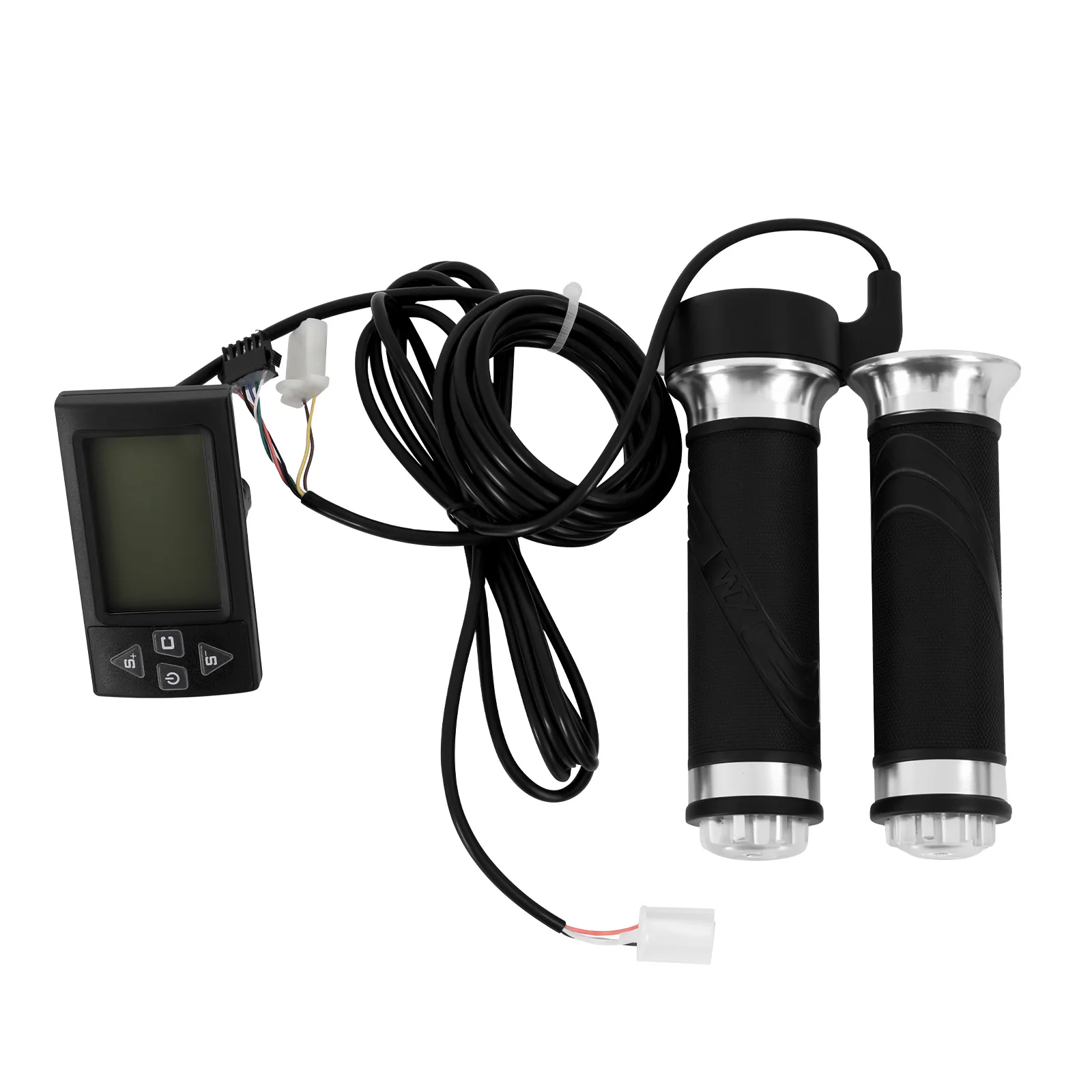

1* LCD Display

1* Battery and Controller Cable

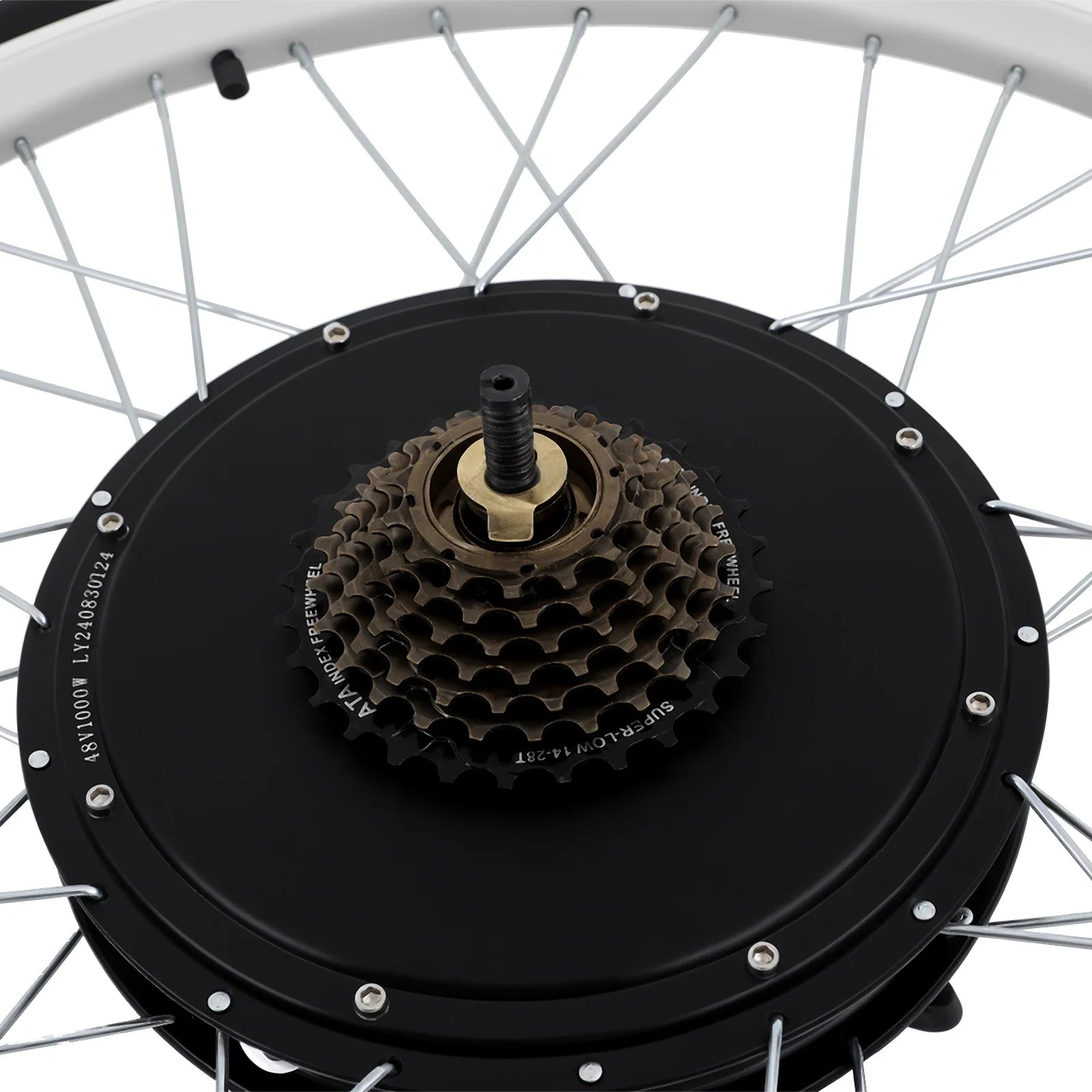

1* 7-Speed Flywheel

Notes

1. Please check the size carefully before ordering. It is only suitable for single-person bicycles or tricycles, not for cargo tricycles.

2. Please note that the battery and charger are not included in the package. Please prepare a lead-acid battery or lithium battery of corresponding voltage in advance. The magnitude of the amperage determines the storage capacity of the battery, which determines the duration of use.

3. While connecting the controller to the wires, please make sure that you connect correctly to the controller, otherwise, the controller may be broken. Please make sure a solid connection between the motor and the controller. Please turn off the battery before connecting the controller to avoid accidents.

4. This product uses a brake cable with a power cord. Customers can use a disc brake, but cannot use a hydraulic brake.

5. This kit is not waterproof, so please do not ride on rainy days.

6. The speed is related to wheel size, road condition, battery condition, guest load, wind Speed, and other factors.

7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
